DS-2CD2146G2H-ISU 4MM

The 4MP AcuSense dome with reach

Most indoor dome positions sit 2 to 3 metres above the activity area, where a wide-angle 2.8mm lens captures the whole space at usable detail. Some installations have higher ceilings: warehouses, double-volume retail, large open-plan offices, sports halls, and any space where the camera is 4 metres or more above the floor.

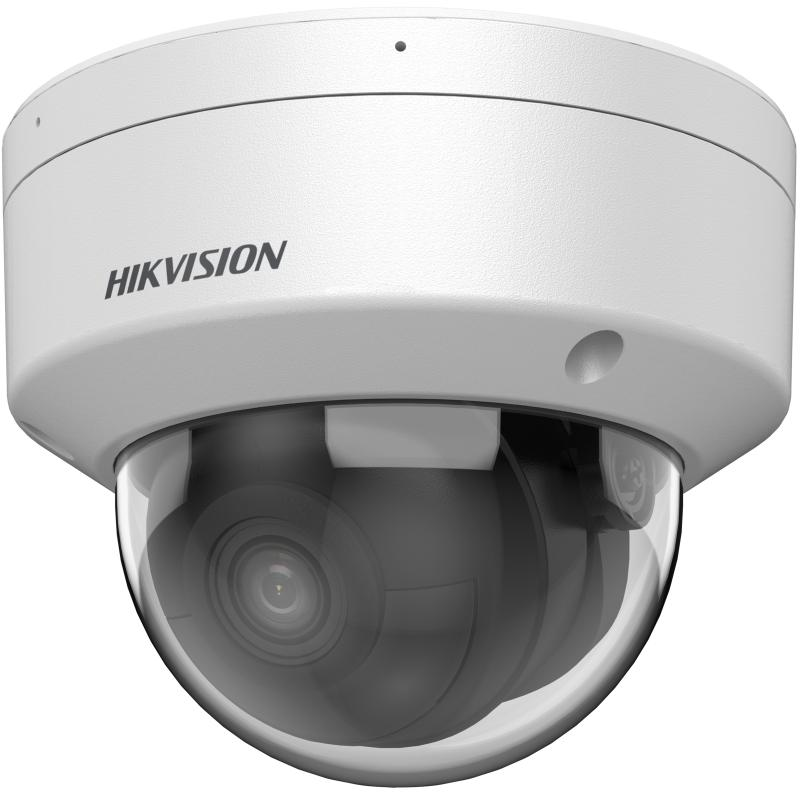

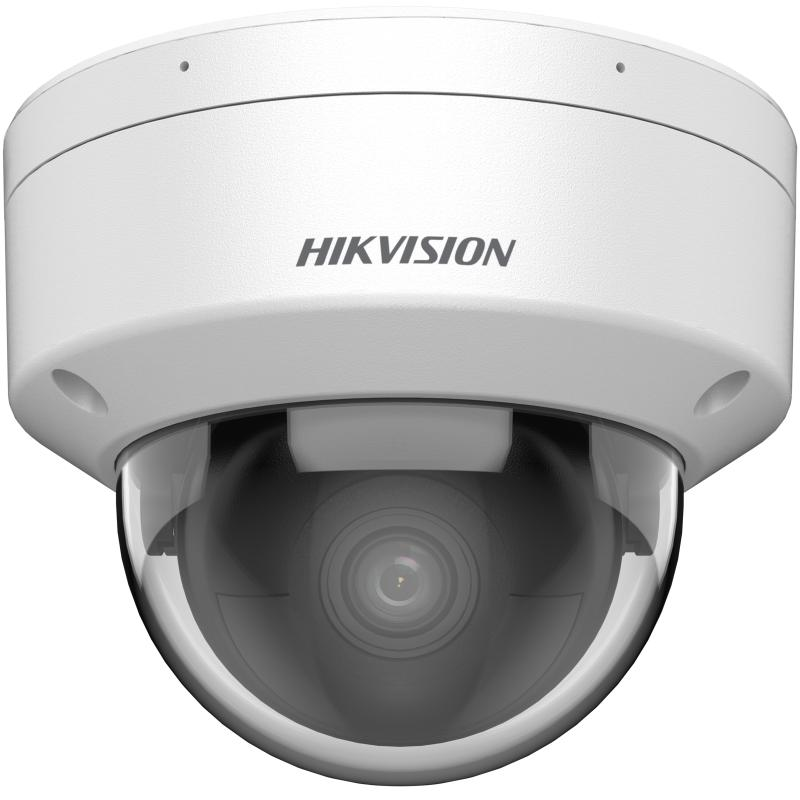

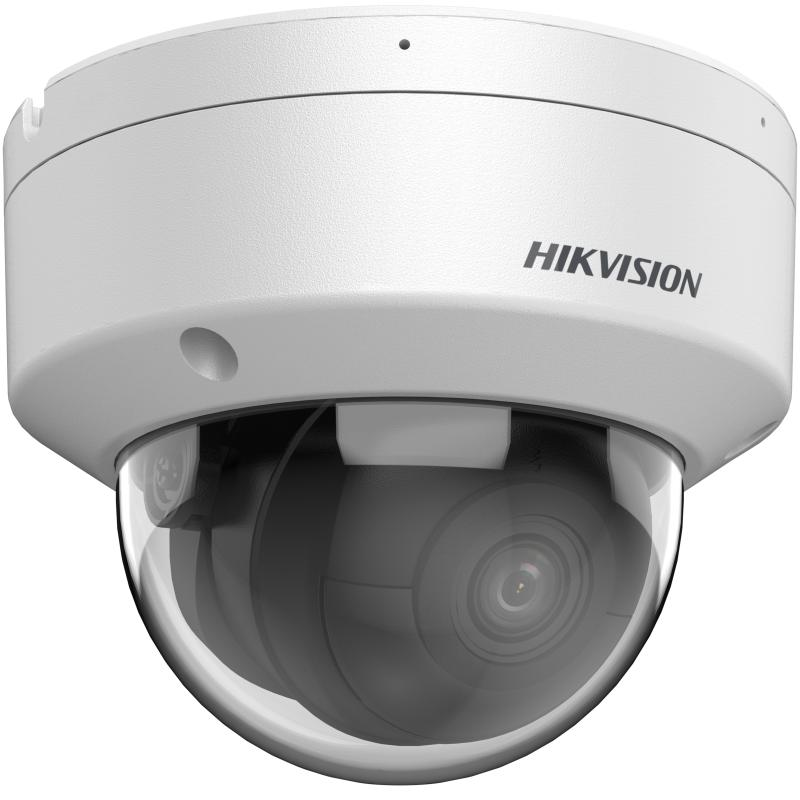

The Hikvision DS-2CD2146G2H-ISU with the 4mm lens is the version we install in those positions. Same 4MP resolution, same AcuSense AI, same audio capture, same dome housing as the wide-angle version. The 4mm lens captures roughly an 84° horizontal field of view, less of the scene but with more usable detail per person on the floor below. The right trade-off when ceiling height makes wide lenses lose detail at floor level.

What this camera is actually good at

• 4MP resolution with 4mm lens. 84° field of view. More usable detail at distance.
• Built-in microphone. Audio recorded alongside video.
• AcuSense onboard AI. Human and vehicle classification at the camera level.
• 120 dB WDR. Bright window light against interior shadow handled cleanly.
• IP67 weather-sealed and IK10 vandal-resistant.
• Up to 30m IR illumination.
• Compact dome form factor.
• H.265+ compression.

Where this camera belongs

• High-ceiling retail interiors like warehouse-style stores and hardware shops
• Double-volume reception areas and atriums in larger office buildings
• Open-plan offices and co-working spaces with ceiling heights over 4 metres
• Sports halls, gyms, and recreation facilities needing clear identification at floor level
• Restaurants and hospitality venues with high or sloped ceilings
• Industrial workshops with ceiling-mount coverage of equipment areas at distance
• Larger body corporate communal areas like club houses, function rooms, and indoor recreation

If you want a wider view or simpler features

• The DS-2CD2146G2H-ISU 2.8mm is the wide-angle alternative for standard ceiling heights.
• The DS-2CD2146G2H-I 2.8mm is the same camera without audio in the wide-angle lens.

If you want to step up

• The DS-2CD2186G2H-ISU 2.8mm is the 8MP version with audio. Doubled resolution for high-ceiling positions where maximum detail matters.
• The DS-2CD2141G0-LIU 4mm is the alternative previous-generation 4MP dome with audio.

Pairs cleanly with the DS-7616NXI-K2 16-channel NVR. Our installation guide covers system design.

High ceiling installs need precise alignment

The further the camera is from the activity area, the more important precise alignment becomes. A few degrees off at 5 metres above the floor puts the identification zone in the wrong place. We do precision alignment, focus locking, and live testing on every install across Pretoria East, Centurion, Midrand, and Johannesburg.

Full 3-year Hikvision South Africa warranty through authorised distribution. Pricing on the CCTV installation prices page.

Browse the full Hikvision IP camera range or read more about Hikvision CCTV systems. Current installation specials available. Common questions answered on the CCTV FAQ page.
