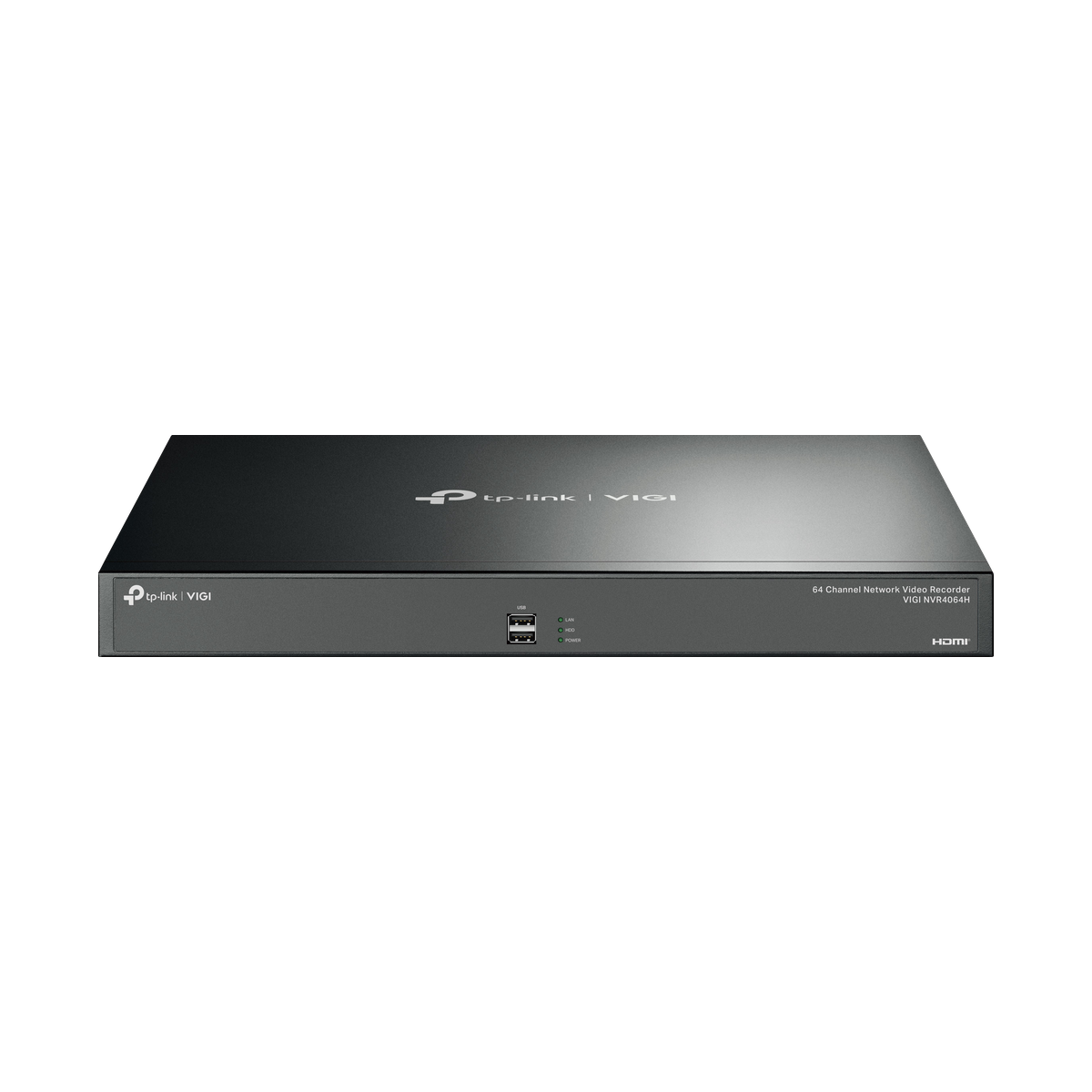

The VIGI NVR4064H is the largest recorder in the VIGI range. Sixty-four channels, four drive bays at up to 16TB each, dual network ports and full alarm integration in a rack-mountable chassis. This is industrial and large-estate equipment.
Where 64 channels is the right answer
Large warehouses, manufacturing sites, multi-building business parks, security estates and body corporates managing extensive common areas. Anywhere a single site genuinely runs dozens of cameras and needs them all on one recorder rather than several units nobody wants to manage separately.
Storage measured in months
Four SATA bays taking up to 16TB each is the highest storage ceiling in the range. On sites where footage has to be kept for compliance, or where an incident might only come to light weeks later, that retention is the whole point.
Two network ports
Dual LAN is a genuine operational feature rather than a spec-sheet number. It allows the camera network to be kept physically separate from the site’s business network, which is both better practice and a common requirement on corporate sites. Two HDMI outputs and a VGA output give independent displays, so a control room can run more than one view.
Alarm and system integration
Sixteen alarm inputs take feeds from smoke detectors, beams, panic buttons and fence energisers. Four alarm outputs drive warning lights, sirens or gate controllers. Two RS-232 serial ports allow pass-through of serial data and debugging, which matters when the CCTV is one part of a larger integrated system.
Finding what you need
Smart search by motion and object lets an operator filter recorded footage rather than watching it. On a 64-camera site that is not a convenience, it is the only practical way to investigate anything.
Specifications
- Channels: 64
- Compression: H.265+ / H.265 / H.264+ / H.264
- Storage: 4 SATA bays, up to 16TB each
- Network: 2 x LAN ports
- Video output: 2 x HDMI plus VGA, independent output
- Alarm: 16 in, 4 out
- Serial: 2 x RS-232
- USB: 1 x USB 3.0 rear, 2 x USB 2.0 front
- Audio: audio in and audio out for two-way audio
- Storage expansion: eSATA interface
- Smart search: by motion and object
- Compatibility: ONVIF
- Dimensions: 440 x 330 x 44 mm, rack mountable
- Power: 100-240 VAC, 6.95W without disk, 48.38W with disk
- Operating temperature: -10 to 55 degrees Celsius
- Weight: 4.0 kg net
- Warranty: 2 year
Hard drives are not included and are specified separately. Given the weight, a rack tray is recommended when mounting with angle iron. The tray is not included.
Installation
Easy CCTV supplies and installs the VIGI NVR4064H on commercial and industrial sites across Pretoria, Centurion, Midrand and Johannesburg. Systems at this scale are designed and quoted individually after a free site inspection. See our CCTV installation price guide for commercial ranges, or contact us to arrange a site visit.
